Summary

Lean Infrastructure is Transect-based engineering and landscape works that support Lean Urbanism projects through incremental improvements that can be quickly and economically implemented by subsidiary players without the need for massive equipment, capital or protocols. It is infrastructure designed to fit the needs of a particular level of urbanization (a block or so), but can be frugally upgraded or downgraded to the adjacent level, or adapted to changing conditions.

 Back to All Publications
 Download the PDF

Gold-plating

For the past six decades, the waste inherent in cheap oil, overblown national public works standards, and car-dominance have resulted in gold-plating (incorporating costly features or refinements into something unnecessarily, often in the name of excessive “factors of safety” or “redundancy”). This gold-plating presents barriers to accomplishing good urbanism in the form of initial financial costs that can completely block growth, operating and maintenance and replacement costs that are bringing municipalities to their knees, and space-hogging works such as wide pavements or sprawling over-sized pipes that leave no room for sidewalks and trees. Lean Infrastructure is a response to these issues.


Lean Infrastructure

The Tenets of Lean Infrastructure are:

  • Anticipates immediately foreseeable development, whereas conventional infrastructure often anticipates a climax condition of massively increased level of urbanization, with funding to match
  • Remains nimble by banking the savings (or refraining from overburdening the tax base) for unforeseeable needs
  • De-emphasizes economies of scale in favor of the economy of avoiding over-provision and the pragmatism of smaller-scale interventions
  • Favors many manageable projects over a few grandiose ones, until the skill sets for maintenance and construction nearly converge
  • Favors an economy of means, but also favors open extensibility over penny-pinching
  • Concerns itself with life-cycle costs (not just capital costs) and cash flow streams, including the recognition that peaks followed by collapses in the extraction of finite resources at the planetary level will have local ramifications
  • Fosters competency and depends on it, eschewing over-specification and dependency on regulations and tables of standards
  • Remains visually and experientially accessible except for very good reasons
  • Takes a cautionary stance toward proprietary or exotic products, or products or systems that are dependent on cheap oil
  • Utilizes patterns that have a looser, parametric connotation than the strict standards of conventional public works manuals (especially applicable to retrofits of conventional sprawl infrastructure)
  • Recognizes that intensifications of urbanization should be balanced with enhancements of nature
  • Employs a declension of green-to-gray infrastructure that aligns with the Rural-to-Urban Transect.

Imperial Engineering

The ethos of Lean Infrastructure could in some ways be represented by the smaller projects of the Imperial and Royal Engineers of the British Empire at the turn of the 20th Century, and pay-as-you-go projects of the American settlement-building pioneers. In fact, one could say that there have been three major imperial infrastructure movements.

The Roman Empire is exemplified by massive longstanding infrastructure in support of civilization building.

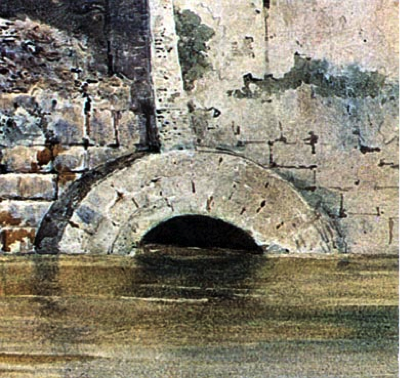

Cloaca Maxima Rome

The Cloaca Maxima of Rome is more than 2000 years old and is still functional. Credit: Wikipedia

Roman Road

This cutaway of a Roman road illustrates longlived, low-maintenance construction practices.

The British Empire employed lean Infrastructure and good placemaking.

Royal Engineers

The Royal Engineers were expected to build immediately and with the labor and materials at hand, using simple protocols and a lot of common sense. Credit: ebay

The American Empire is exemplified by gold-plated infrastructure enabled by access to cheap oil, driven by over-dependence on the automobile, and resulting in terrible placemaking.

Chinese Freeway

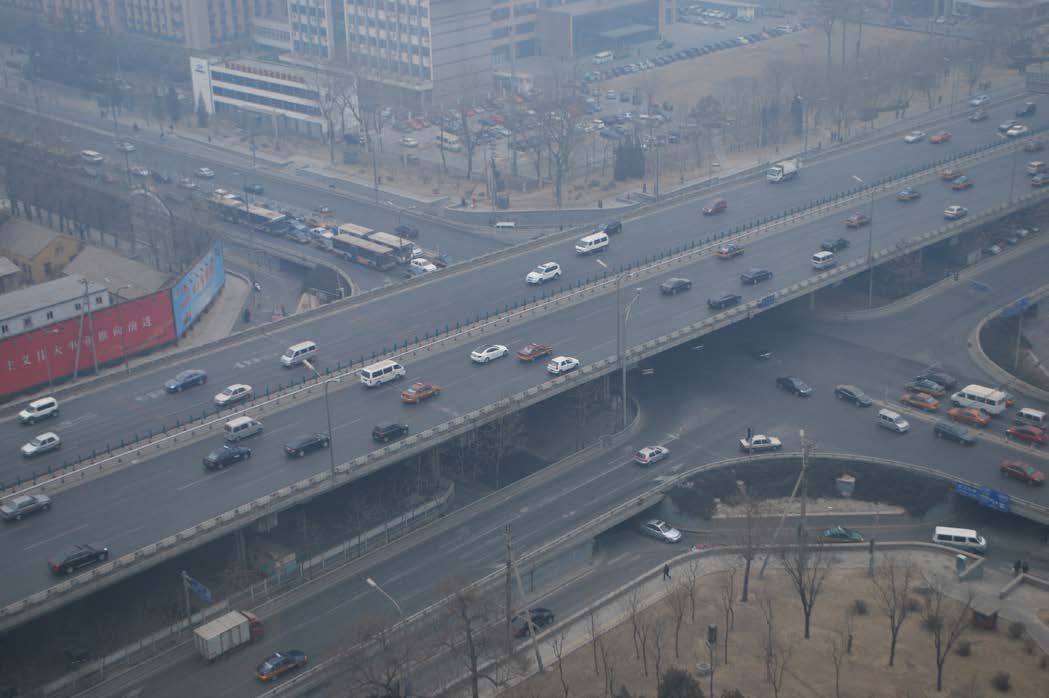

This Chinese freeway illustrates how the rush to emulate the American Way can have horrible results. Credit: Flickr

The option of Lean Infrastructure is important because of a potential converging triple crisis of global energy price escalations, increasing issues with climate change, and a resultant financial instability.

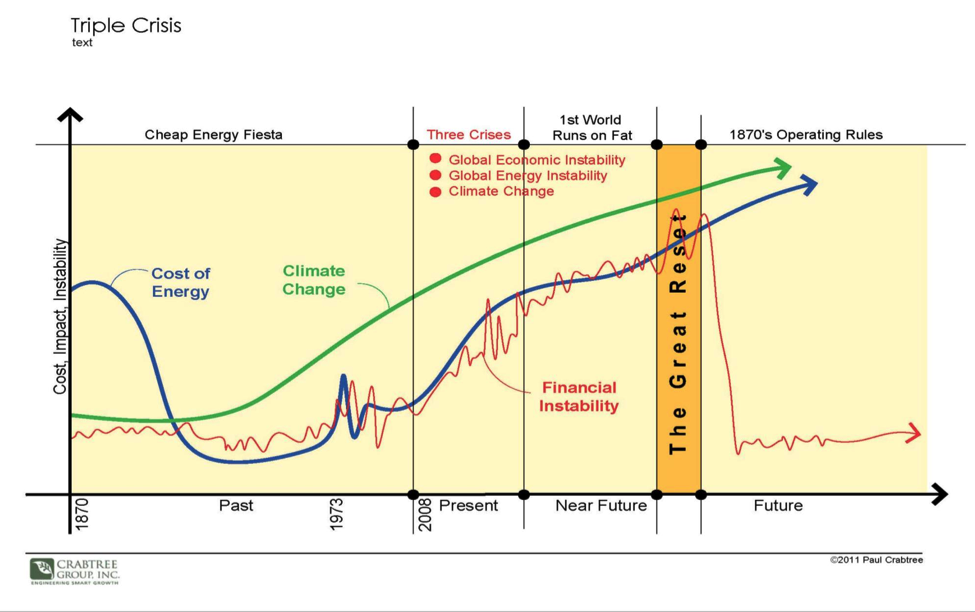

Triple Crisis

The Triple Crisis, graphed, predicts the potential for a need to adapt to diminished circumstances, such as the pre-cheap-oil period, during the expansion of the British Empire or the colonization of the United States, where financial capital was meager, and energy and materials were available only locally — yet significant civilized placemaking was achieved.

Historically, roads often began as a game trail, were used by horses, widened and smoothed for wagons, then paved over to accommodate intensified urbanization or, simply, speeding cars.

Succesional Transect

A successional Transect. Credit: DPZ

A street excavation of older cities, such as in Charleston, SC, will often reveal this succession of materials, which is contrary to today’s immediate demand for climax-condition infrastructure no matter the context.

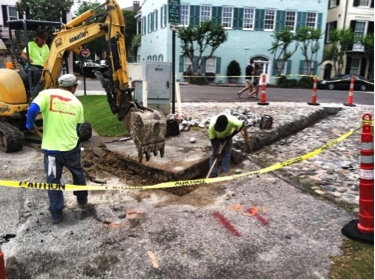

Street excavation Charleston, SC

Street excavation, Charleston, SC. Credit: Paul Crabtree

The Old Road Society — an eclectic group of property owners in Garrison, NY, recently successfully petitioned their County administration to prevent the paving-over of their historical dirt roads. Old Albany Post Road had been used by General Washington to move troops during the Revolutionary War, and a paving and widening of the roads would have resulted in the destruction of neighborhood character. The group also showed that proper repair and maintenance of the broken-stone roads would save money as opposed to paving regimes.

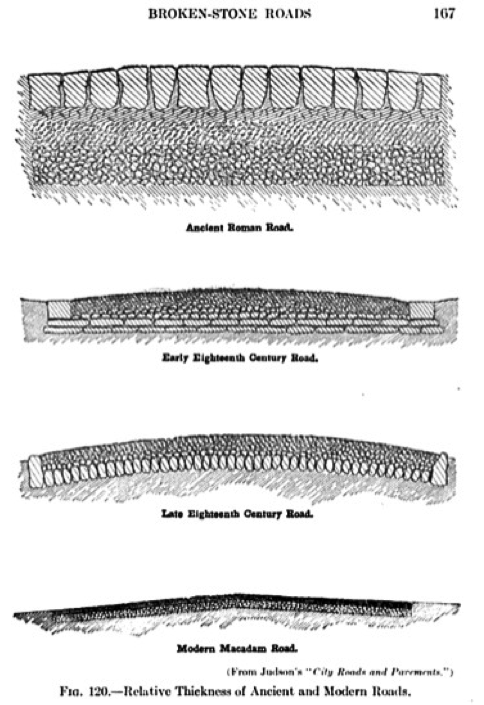

Broken Stone Roads

The progression of the broken- stone road. Ancient Roman road, Tressauget’s road of 1700’s, Telford’s of the 1800’s, and Macadam’s late 1800’s presents a long era of alternative road-building practices that could provide lessons for today’s designers and road builders. Credit: The Art of Roadmaking, 1910

Art Road Making

The Art of Road Making (1910) is an example of 20th century texts that detail a plethora of original Lean road-building technologies that provide alternatives to conventional paving, particularly for local or rural low-volume roads.

Paving Surface Materials

Construction Cost Comparisons

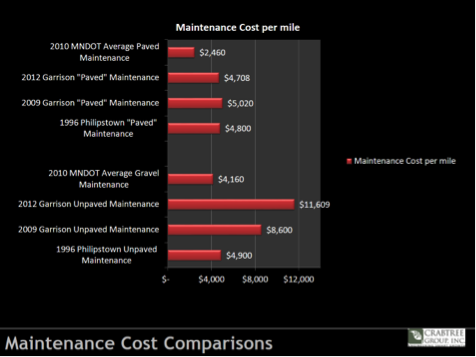

Maitenance Cost Comparisons

Cost comparisons showed that the County was overspending on both paving and maintenance, and proved the need to rethink their conventional public works paradigm.

The 150 year-old drainage scheme for a courtyard house in Mesilla, NM, is a simple, yet highly functional “rain garden”; though likely illegal within today’s complex over-specified hydrology regulations that often require pipe, concrete, proprietary products, and large gas-hogging construction machinery. On the right is an over-engineered raingarden for Cermak Road in Chicago, questionably dubbed “The Greenest Street in America.”

Courtyard Mesilla

150-year-old drainage scheme. Credit: Paul Crabtree

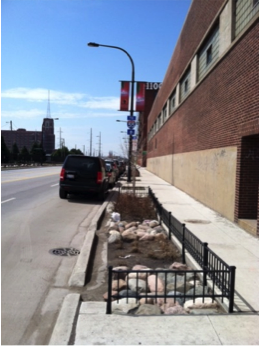

Raingarden Chicago

Over-engineered rain garden. Credit: Paul Crabtree


Incremental Provision

Water supply and wastewater treatment in the U.S. is typically not gold-plated as compared to surface roads. They are comparatively cheap, high quality, high capacity, and of low visual impact for such a vital resource. Most third-world countries envy the water supply systems of the U.S., and for good reason. The main issue with this type of infrastructure is that it is often required that it be installed at a climax condition rather than incrementally, or in massive centralized plants rather than in a smaller distributed fashion, that can be much more economical both in capital and life-cycle costs.

A small greenfield development could be settled incrementally in the following fashion.

This greenfield illustration depicts a method for incremental infrastructure that parallels the actual growth of a community. Like most railroad towns or Law of the Indies settlements of the U.S. west, the townsite is platted for a climax condition to provide the framework for incremental settlement and building. The first three generations are served by gravel roads and well and septic systems, while the owners contribute over time to an infrastructure fund that will eventually provide the means for paved roads and water and sewer systems that support more intense settlement.

Townsite Tool


Leadership Regained

Many U.S. civil engineers have reneged on their responsibility to design workable solutions that support civilization in an economical and sustainable fashion, by defaulting to the code books and standards tables before even considering empirical design that fits the context. In fact, Americans are already beginning to see third-world countries leap-frogging the U.S. in sustainable infrastructure solutions due to the absence of an over-burden of regulations in those less-developed countries. A move to Lean Infrastructure that supports good urbanism at smaller scales could lead to a renaissance in public works that could help to put the U.S. back on track as a legitimate leader in the field of civilization-building.

Paul Crabtree

Paul Crabtree

Paul Crabtree is a Civil Engineer who has focused his work on the integration of intelligent urban infrastructure with New Urbanism and Smart Growth Planning. Paul is the founder and president of the Crabtree Group, Inc. He is a leader in the Congress for New Urbanism Rainwater Initiative, as well as an author and lecturer on sustainable infrastructure, from water to transportation. Paul is a founding member of the Transect Codes Council, and a contributing author of Sustainable and Resilient Cities (Wiley, 2011).
